SCADERIS Alarm Gateway
Display additional
information on your
Aveva System Platform alarms
Scaderis Alarm Gateway
Enhance your alarms with additional attributes configured in a database.
Our component allows your operators to respond more effectively to alarms.
As a base template, it allows you to continue using the standard System Platform components to display your alarms.
Technical Sheet Documentation Trial Version
Overview

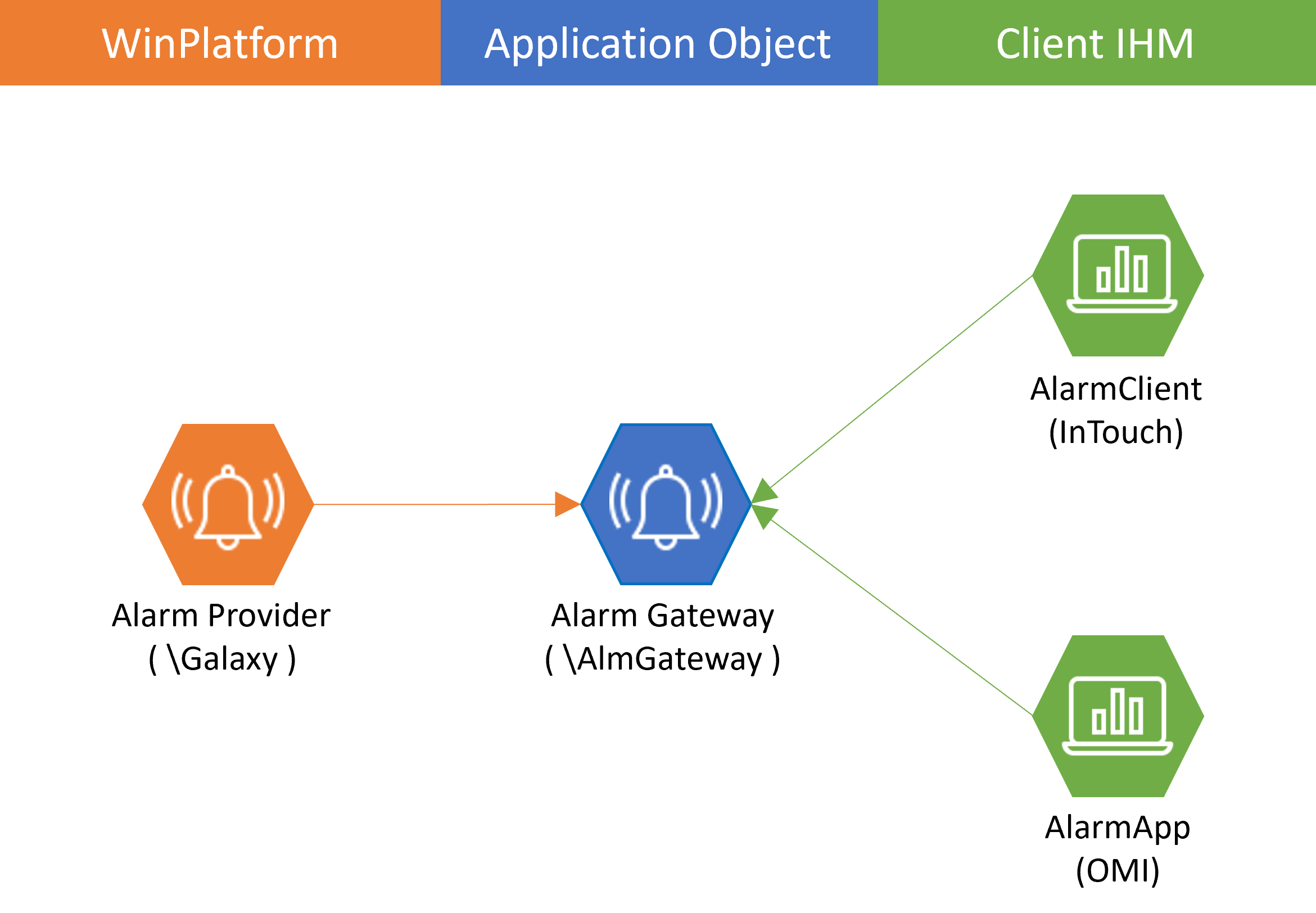

SCADERIS Alarm Gateway is a gateway between the Galaxy's alarm provider and alarm clients, allowing you to add additional attributes configured in a database to alarms.
The Alarm Gateway is a template that is configured and deployed in a standard way in the Galaxy.
Its implementation is simple and fast.
Added Value
The additional information added to alarms allows operators to better locate the alarm, apply advanced filters, and respond more effectively.
Advantages
Alarm Gateway is imported into the Galaxy as a base template
Additional attributes are configured in a SQL Server table
All common data types are supported
Configuration is done graphically in the Template or Instance
Alarms are displayed in a standard way by AlarmClient (InTouch) or Alarm App (OMI)
No performance degradation
Compatible with InTouch (for System Platform) and OMI
Template

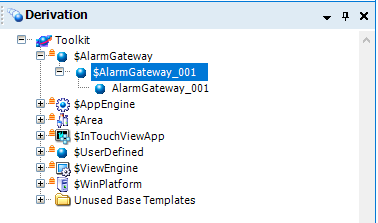

SCADERIS Alarm Gateway comes as a base template that you simply import into your Galaxy.
No software installation is required; everything is contained within the Galaxy, in compliance with System Platform standards.
Configuration

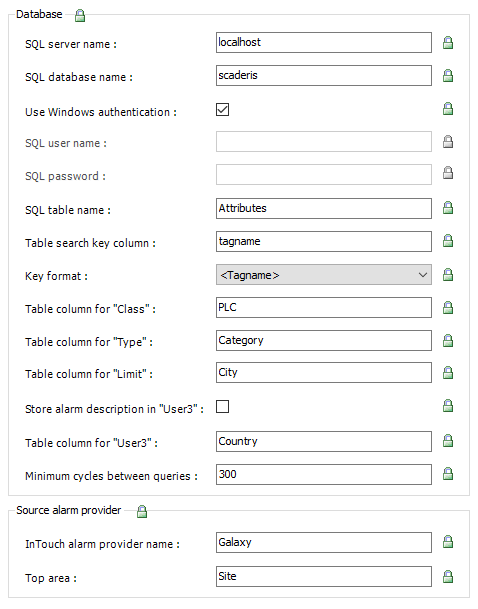

Alarm Gateway configuration is done via a specific tab when editing the template.
It is therefore stored within the Galaxy like the configuration of all other templates.
The database search key can be in the format <Tagname>, <Tagname>.<AttributeName>, or <AttributeName>.
Database
Additional alarm attributes are configured in a SQL Server database table.
The database name, table name, and column names are fully configurable.
Compatibility
Alarm Gateway is compatible with all versions of System Platform from version 2014 R2.
License
The Alarm Gateway license is valid for a specific Galaxy.
The number of Alarm Gateway template instances is unlimited.
Scaderis Software is a publisher of industrial IT software.
